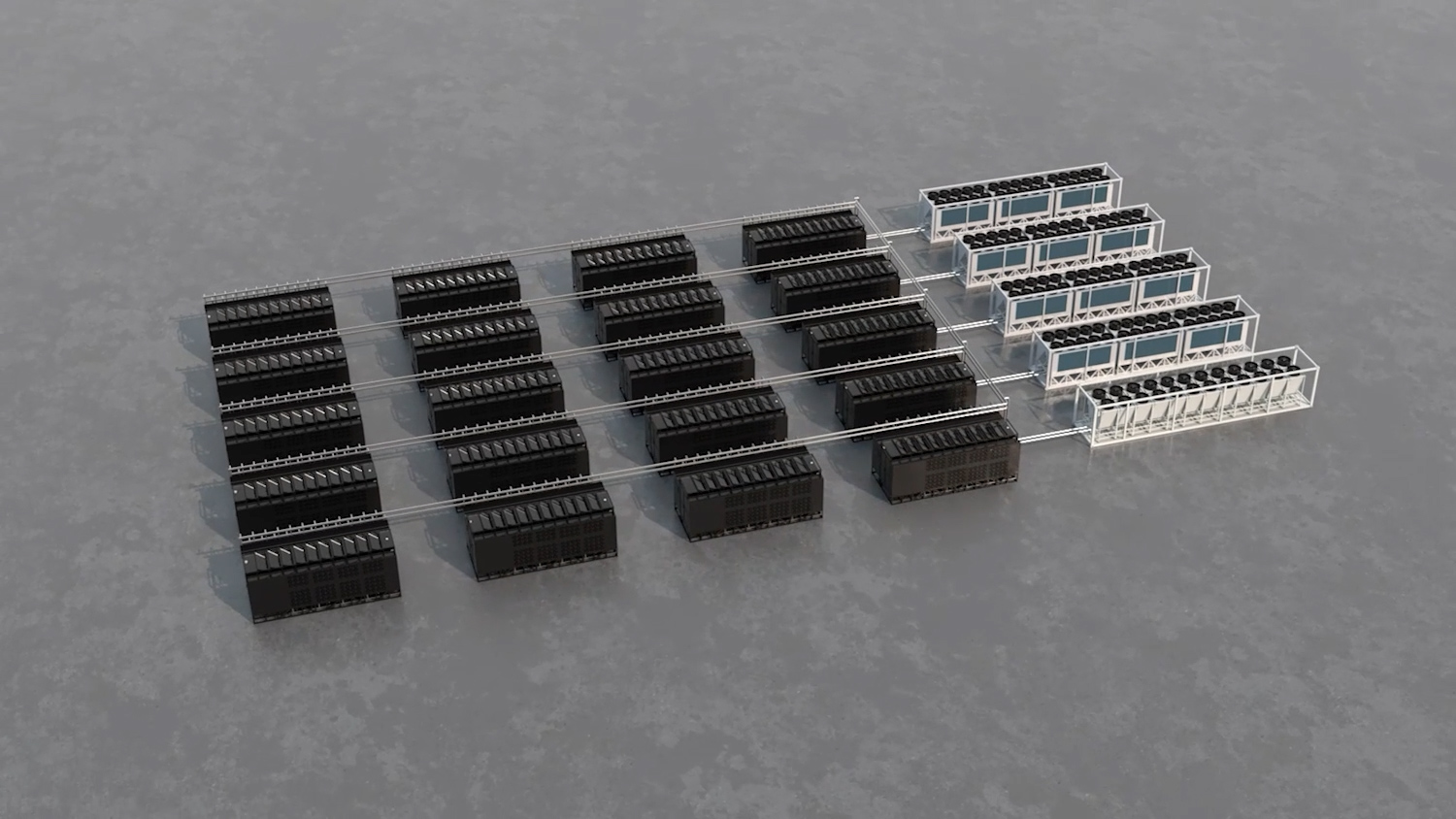

Indoor Fan Wall Module Deployment

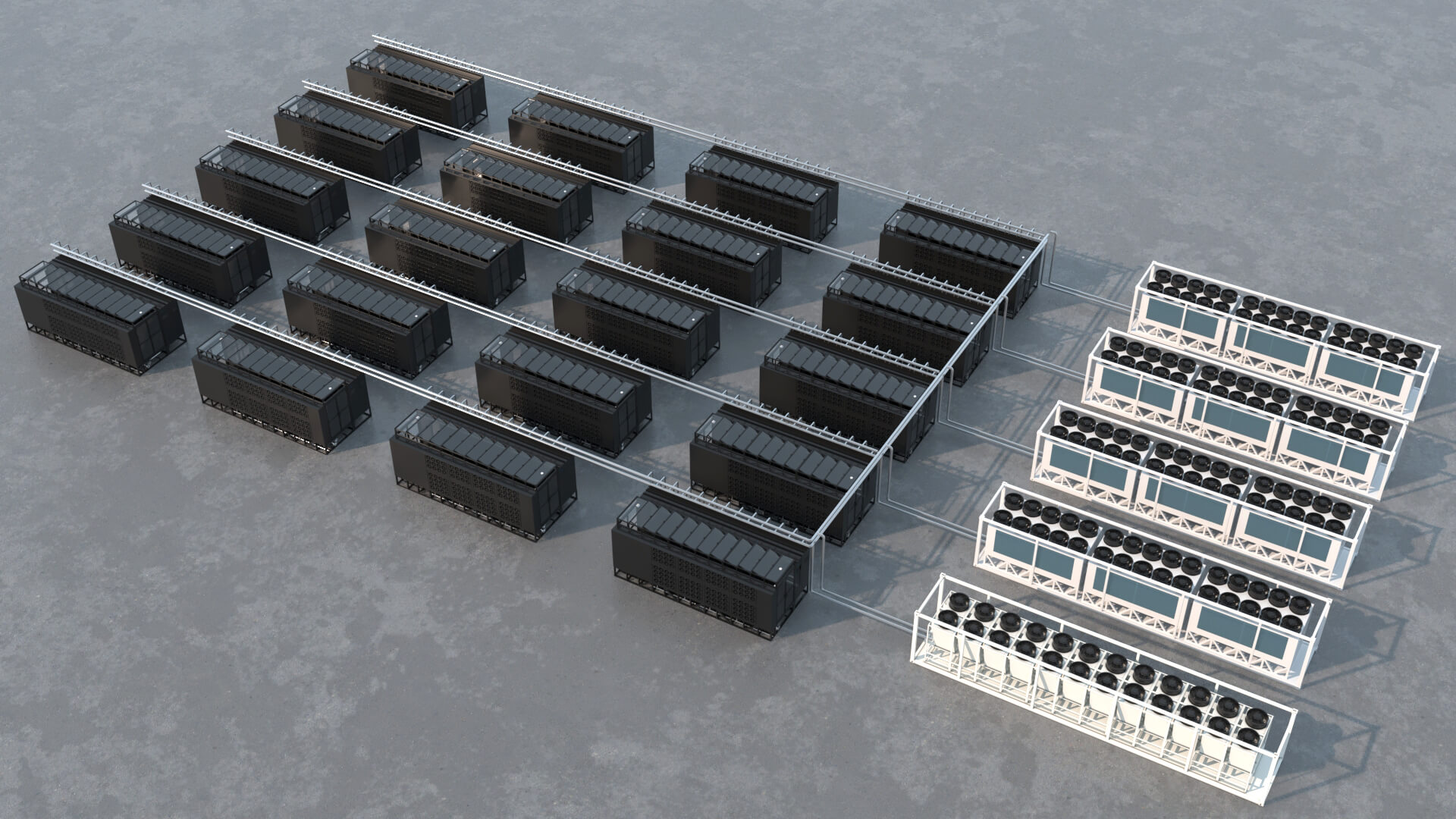

Cluster Overview
A scalable cluster is composed of standardized fan wall micro modules, liquid cooling is supplied by outdoor compression-based water chillers, and air cooling systems using outdoor condenser units, all deployed in a repeatable block layout.
This modular approach ensures predictable capacity expansion, simplified operations, and reduced deployment risk.
per module IT load
as low as 1.25
Near-zero water consumption with free cooling at ≤ 24 ℃
0 municipal water use
Fully modular for rapid expansion
Solution Features
Outstanding Performance
Supports 40 kW high-density air-cooled server racks, with cold plate liquid cooling systems enabling per-rack cooling capacity exceeding 200 kW.

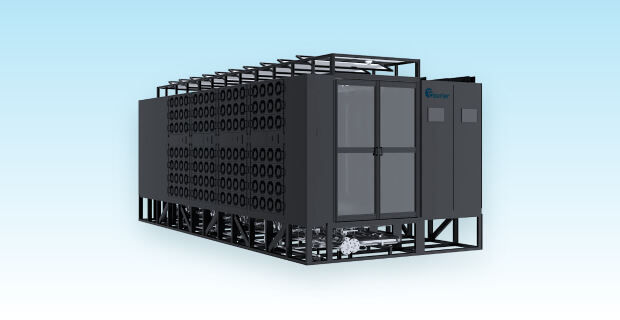

Up to 6 × 100 kW fan wall cooling units (5 + 1).
Fan wall supply air temperature selectable between 17–35 °C; liquid cooling supply temperature options: 25/45 °C, 38/45 °C, or 40/50 °C.
Energy Efficiency
Fan wall and CDU can connect to Fourier's dedicated liquid cooling system, achieving near-zero water consumption. Cold plate systems provide 100% free cooling at ambient ≤ 24 °C. Overall PUE ≤ 1.25.
Fast Delivery
All intermediate piping is prefabricated for quick assembly. Modular shipping minimizes on-site installation workload.
Safety & Reliability
Front/rear doors with sealed hot aisle; automated skylight opening upon fire system activation.
