Up to 1200kW cooling capacity, integrated container solution.
Phase Change Immersion Cooling
Fourier 1200kW phase-change immersion cooling technology utilizes an insulated fluorinated liquid to absorb the heat generated by high-performance chips and other electronic components through evaporation, the vaporized fluorinated liquid then releases heat as it condenses into liquid form. The coolant circulates within the heat exchanger. Inside, it undergoes forced heat exchange with ambient air. The cooled liquid then returns, enabling ultra-low power consumption, silent operation, and stable overclocking of high-performance chips.
Schedule a Demo1200kW Phase Change Immersion Cooling Container
Per TANK
UP TO
Per TANK
Cooling Options
Dry coolers (supports humidification & DX cooling), closed-loop cooling towers, and open towers.
Upgraded Version
Supports 1200kW/TANK, 35°C ambient, pure dry cooler tested.
Configuration
Includes immersion TANK, power distribution system, monitoring system, fresh air system, fire protection system, and piping integration. Ups and power supply are externally placed.
Industry's Leading Innovation

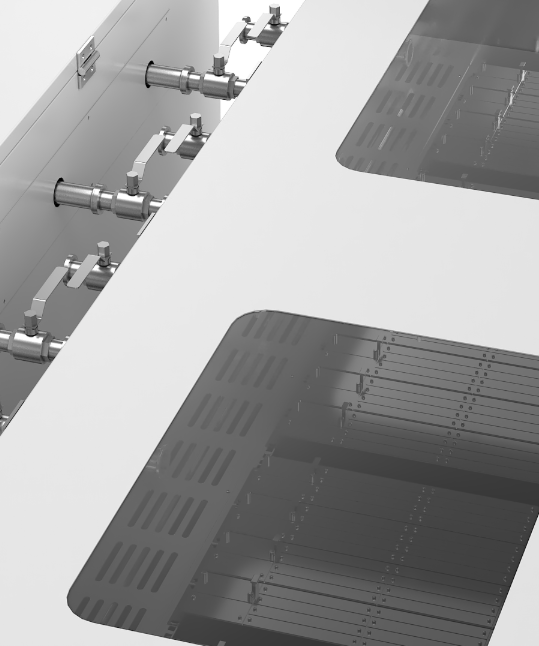

Phase Change Immersion Cooling Container
Download Whitepaper
Solution Features
Enables cooling capacity ≥ 200kW per tank.
Simplifies control logic; modularized cooling units can be paralleled, supporting up to 1200kW per tank.
Each tank has automotive-grade N+1 electronic AC pumps, consuming 30% less power.
High-efficiency microchannel dry cooler.
Automotive-grade pump sets offer higher reliability and faster maintenance.
One-piece structure withstands static and dynamic pressure from vaporization.
Static pressure relief valves, fluorinated liquid recovery systems, and real-time pressure monitoring; automatically shuts off tank power in emergency.
Further enhanced system reliability.
Integrated architecture with prefabrication.
Standard 45-foot container for global shipments.
Fourier integrated intelligent O&M platform
Remote control
Online maintenance via web and mobile app
Standard APl
Northbound communication protocol
Liquid level monitoring in tanks
DNN guided maintenance alert
Report standard, refill-needed and dangerous liquid levels
Improving alert accuracy by 90%
Standard containers with optional features
Video surveillance
Fire alarm
Industry Applications
Fourier Powers the Future
of Al & HPC
Our global team is happy to assist with your modular data center project needs.
