Redefining Single Phase Cooling Limits, Integrated Modular Data Center
Single Phase lmmersion Cooling
The Fourier single-phase immersion cooling system immerses servers in engineered dielectric fluid to deliver full cooling without air-side components. Featuring proprietary gas-liquid hybrid technology and a patented GPU-optimized heat exchanger, it supports 12U-56U server configurations and sustains over 80kW cooling per tank, meeting the extreme demands of high-density Al and HPC workloads.
Schedule a DemoSingle Phase Immersion Cooling
per TANK
Available as standalone or containerized data center
Accomodation
12U to 56U servers in each TANK, NVIDIA H100 GPUs / 750W TDP supported
Exceptional Energy Efficiency
100% of server heat is removed through the immersion cooling system, achieving PUE below 1.15
High-Density lmmersion Cooling Performance
Supports the latest high-power GPU chips without additional forced convection, with six TANK units delivering over 480 kW of total cooling capacity.

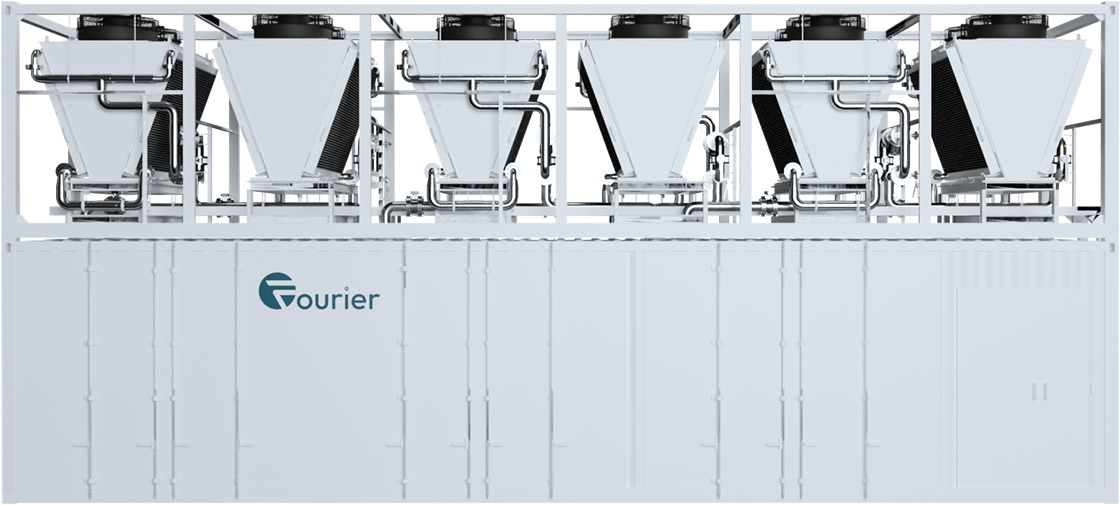

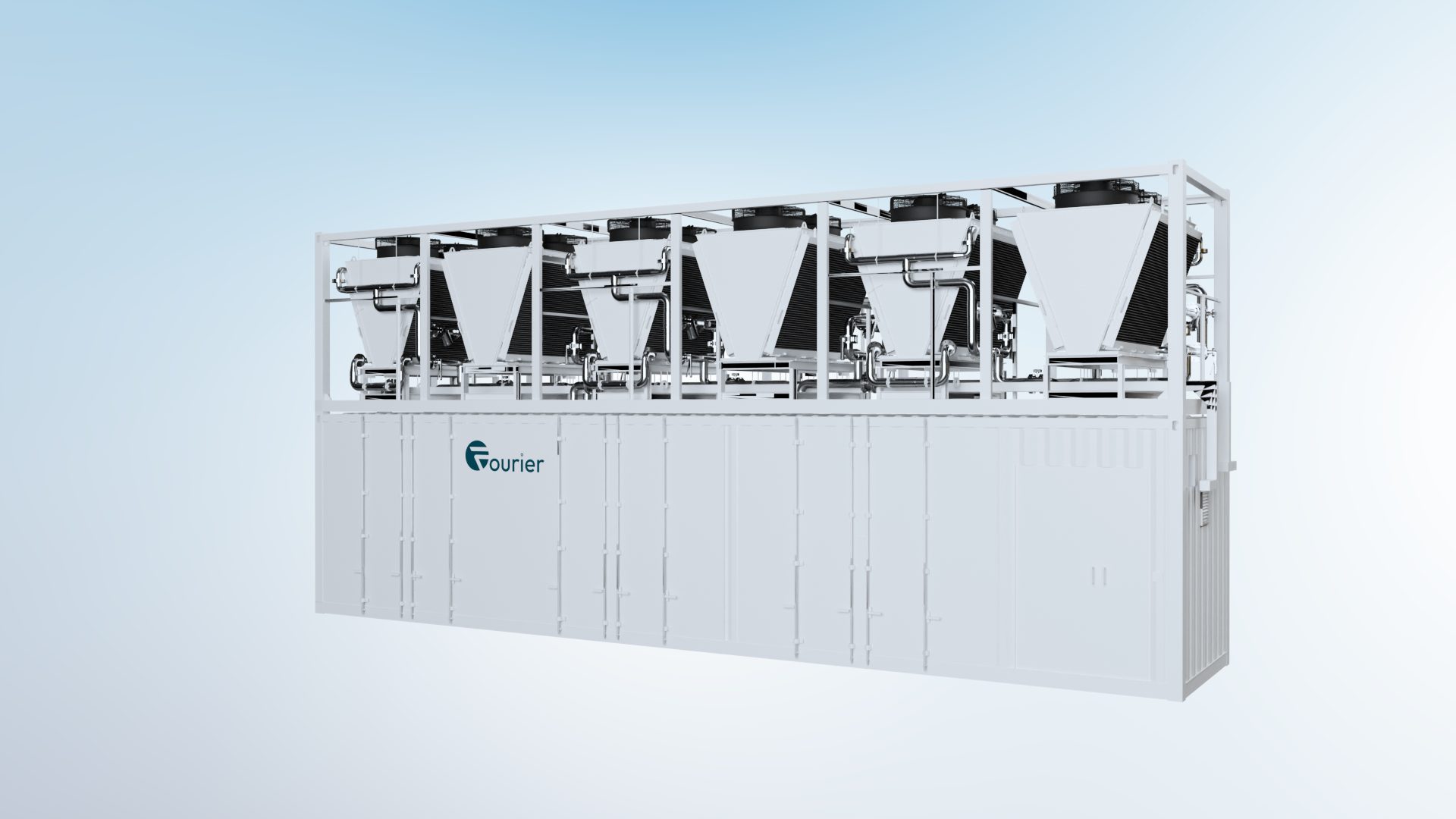

Industry's Leading Innovation Single Phase Immersion Cooling Container
Download Whitepaper
Solution Features
Flexible Deployment
Supports both outdoor containerized and indoor skid-mounted installations for rapid, adaptable deployment.
GPU-Ready Design
Cools high-power GPU chips without the need for additional forced convection components.
Scalable High-Density Cooling
Six TANK units form a single container, delivering a total cooling capacity exceeding 480kW.
High-Efficiency Cooling
100% of server-generated heat is removed through the immersion cooling system, making it one of the most energy-efficient solutions available.
Ultra-Low PUE
Integrated with Fourier’s free-cooling system, achieving PUE < 1.15 in North America, including electrical distribution power consumption.
Power-Saving Pumps
Equipped with pumps that consume over 30% less power than conventional pumps.
Built-in Nitrogen Recycling
Eliminates the need for 24/7 nitrogen generator operation, improving operational reliability.
N+1 Automotive-Grade Pump Redundancy
Offers higher reliability than conventional pumps, with quick replacement capability.
Pressure Safety System
Features a static pressure relief valve and real-time cabinet pressure monitoring for enhanced operational safety.
Intelligent O&M Integration
Fully compatible with the Fourier intelligent operations platform, enabling remote control and online maintenance via web, mobile app, standard API, and northbound protocols.
AI-Powered Liquid Level Monitoring
Utilizes a deep neural network (DNN) algorithm for real-time alerts on standard, refill-required, and hazardous liquid levels—delivering 90% higher alarm accuracy than the industry average.
Enhanced Physical Security
Standard container configurations include video surveillance and fire alarm interfaces.
Industry Applications
Fourier Powers the Future
of Al & HPC
Our global team is happy to assist with your modular data center project needs.
